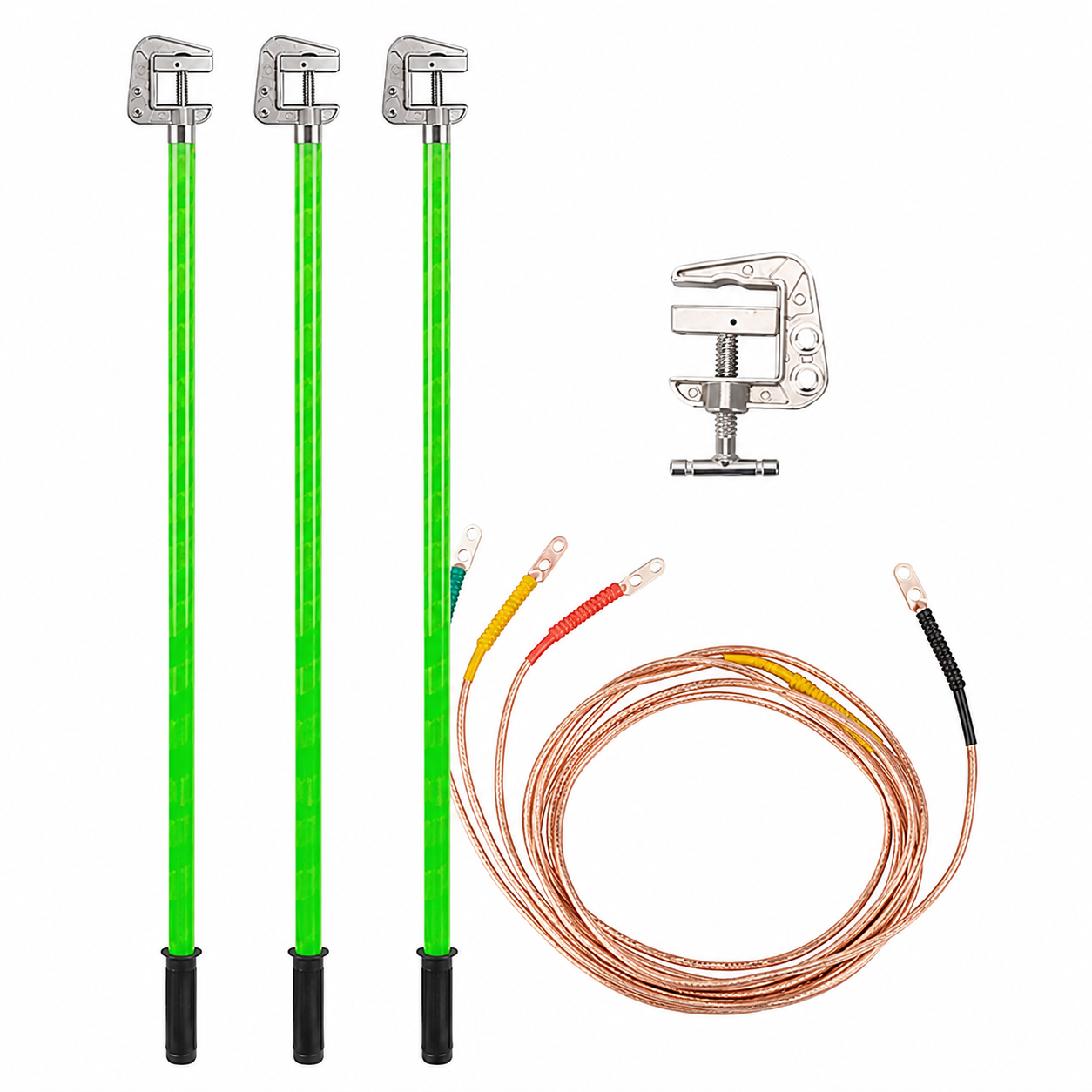

110 kV / 220 kV 3-Phase Portable Grounding Device
Portable 3-phase short-circuit grounding device for 110 kV and 220 kV with earth wire set.
MOQ
1 set
Supply Type
OEM / ODM / Buyer Label
Final quotation depends on specification, quantity and destination — request a quote for exact pricing.
- Standard
- IEC 61230
- Voltage Classes
- 110 kV / 220 kV
- Type
- 3-phase portable grounding device
- Conductor
- Multi-strand flexible copper, transparent sheath (25/35/50 mm²)
- Insulating Rod
- High-strength epoxy resin
- Insulated Rod Length
- 110 kV: clearance height > 3 m
Product Attributes
| Standard | IEC 61230 |
| Voltage Classes | 110 kV / 220 kV |
| Type | 3-phase portable grounding device |
| Conductor | Multi-strand flexible copper, transparent sheath (25/35/50 mm²) |
| Insulating Rod | High-strength epoxy resin |
| Insulated Rod Length | 110 kV: clearance height > 3 m |
| Cable Configuration | 3-phase (live) + 1-phase (earth) |
| Certification | CE |
| Color | Green (customizable) |
| Application | Electrical maintenance |
| Brand Name | JYH |
| Place of Origin | Hebei, China |
Description

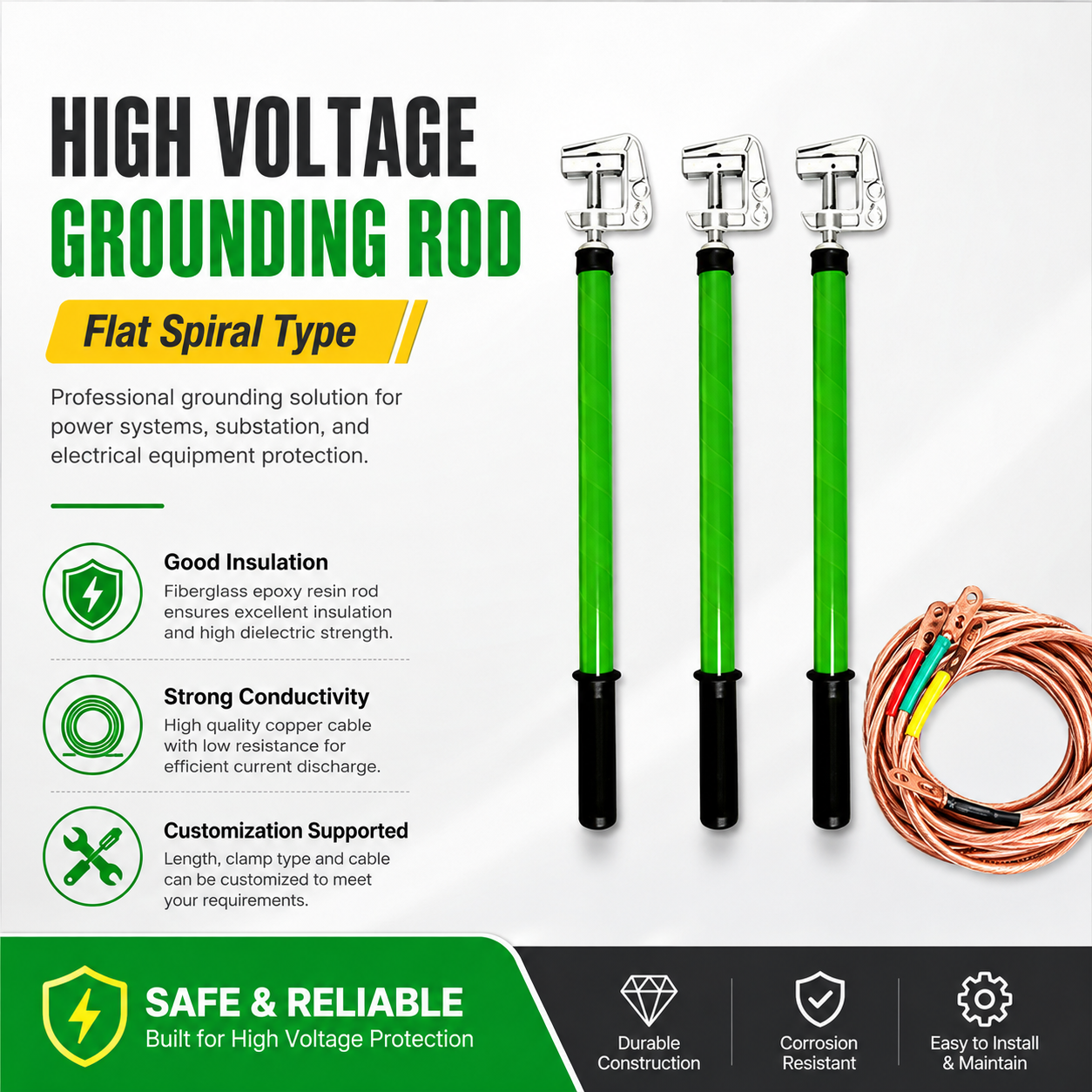

Designed for high-voltage substation and power line maintenance, providing reliable short-circuit protection and static discharge for 110 kV and 220 kV systems.

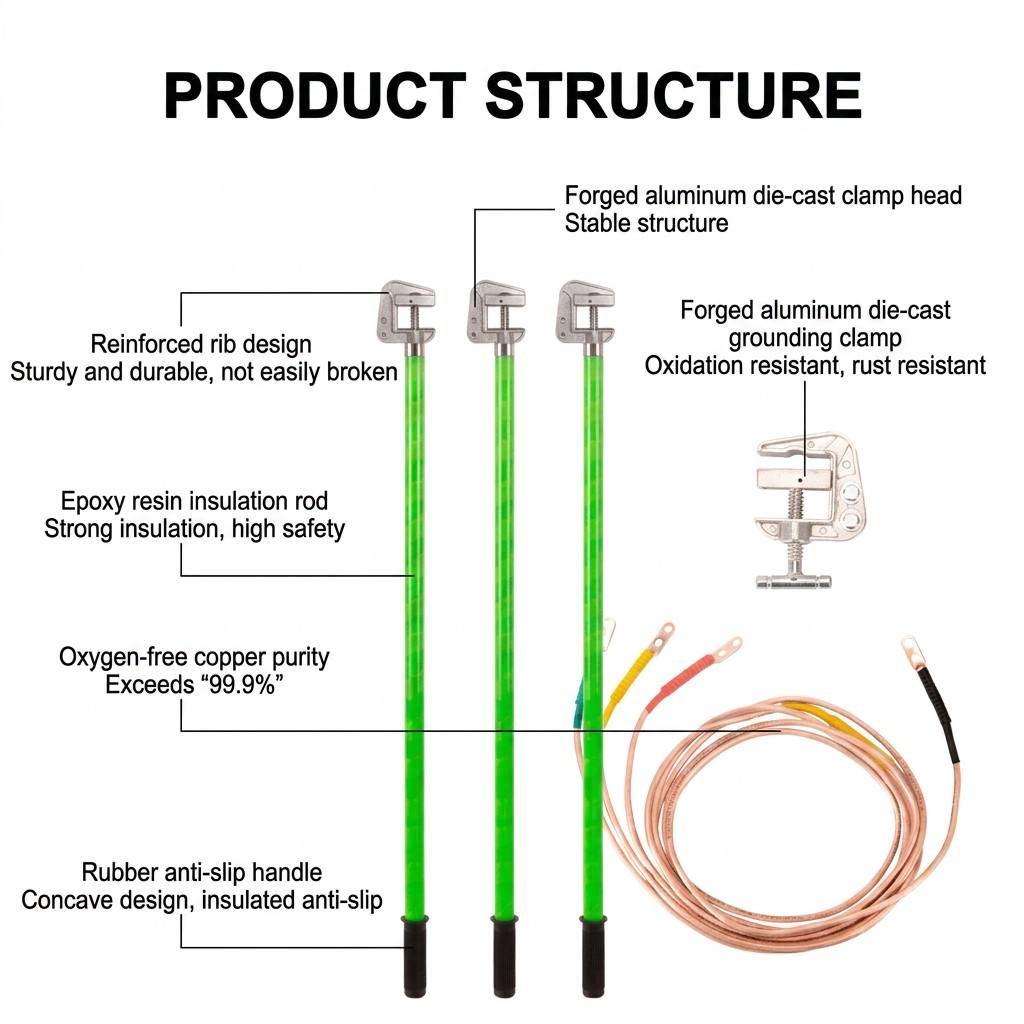

High-strength epoxy resin insulating operating rod with outstanding dielectric performance and mechanical toughness, ensuring safe operating distance and long-term outdoor reliability.

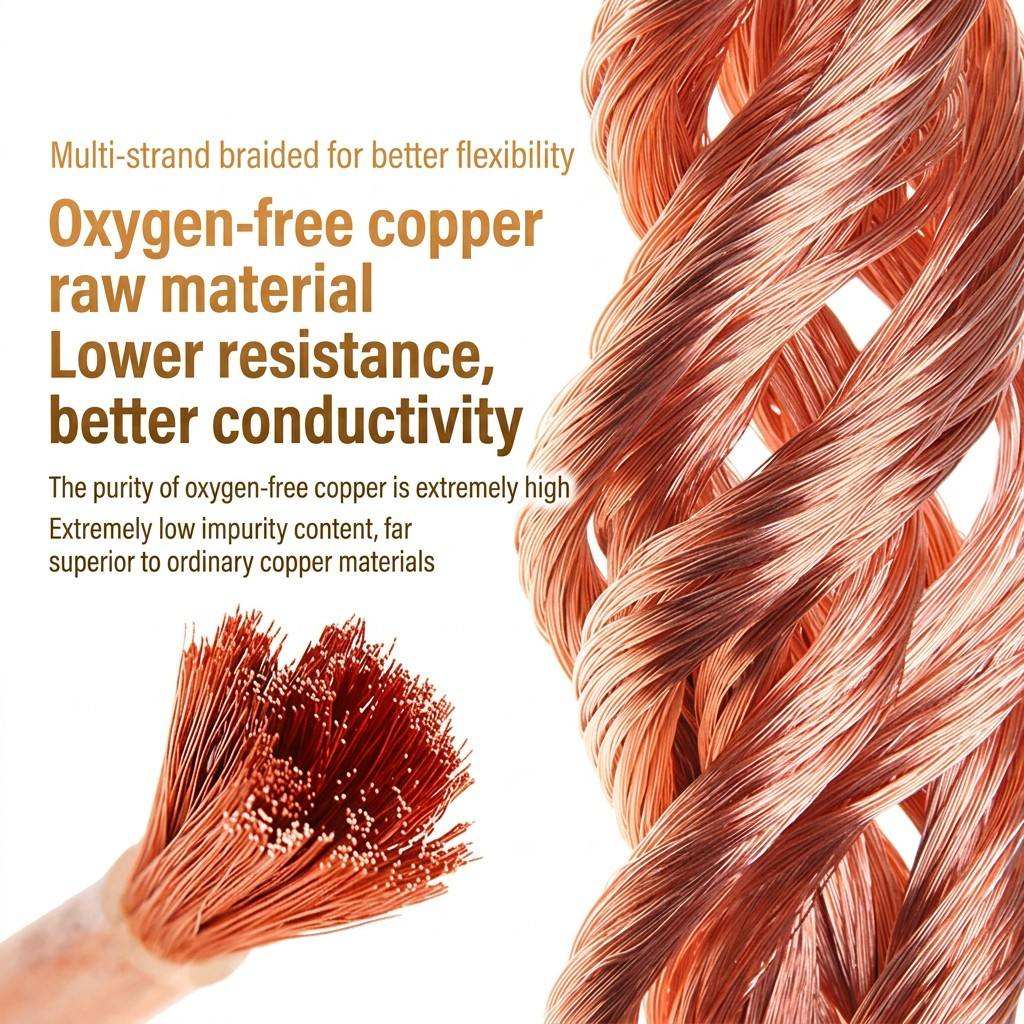

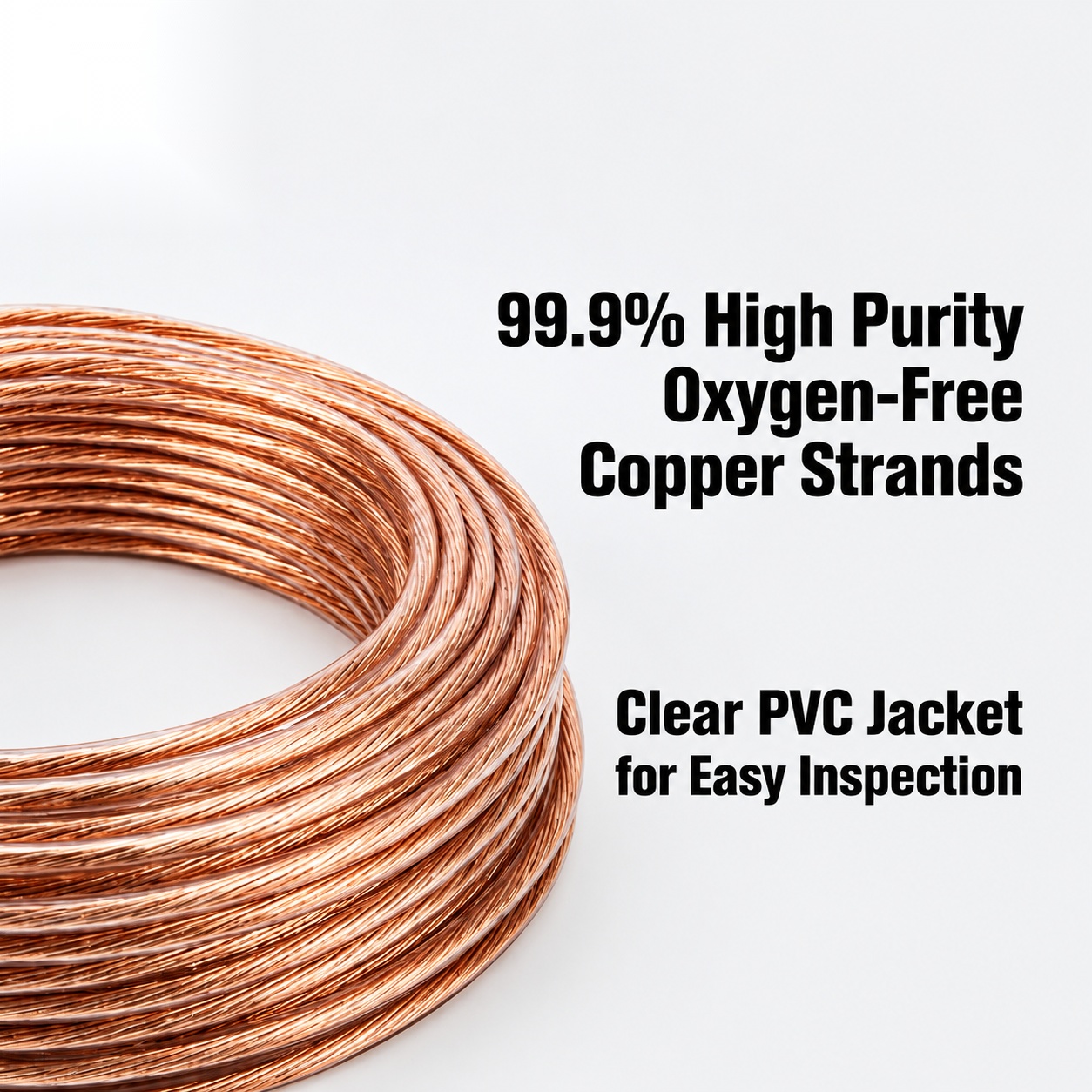

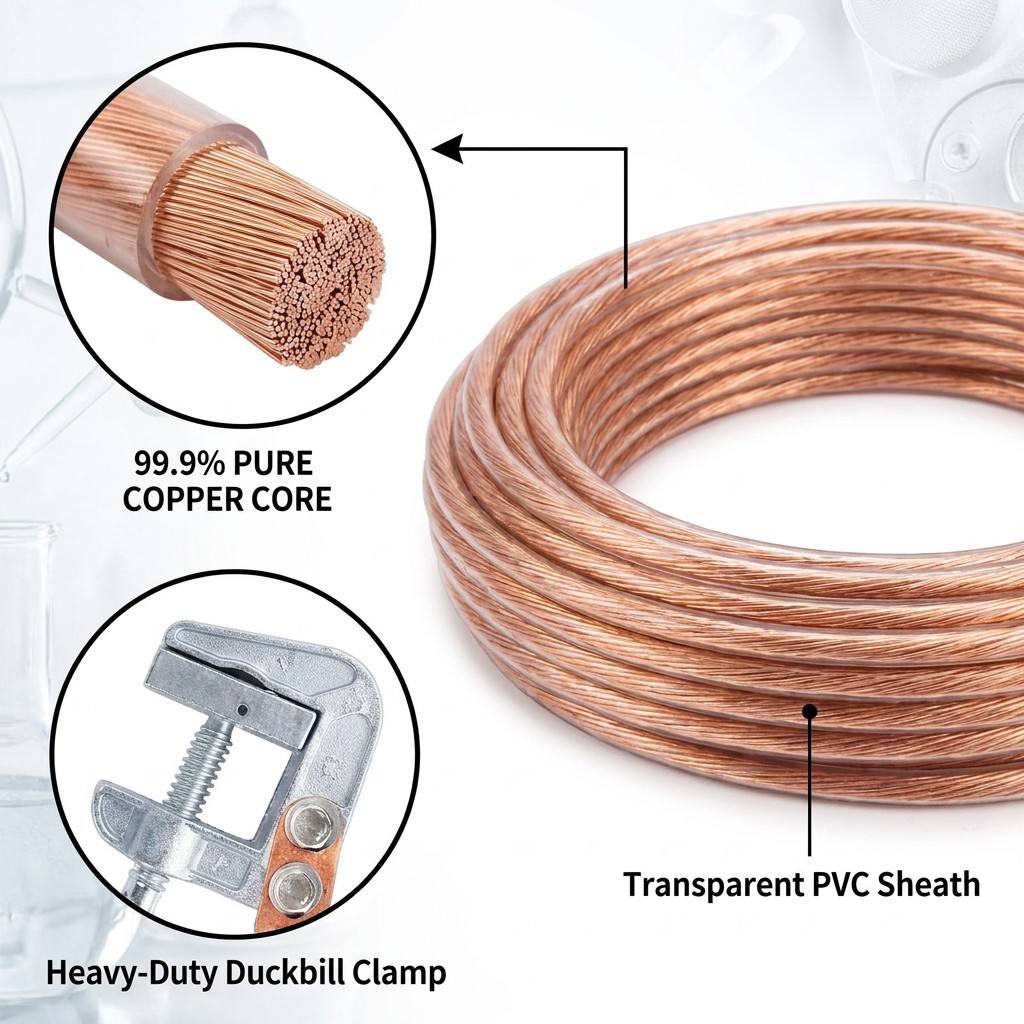

Multi-strand, transparent-sheathed flexible copper grounding cables (25 mm², 35 mm², 50 mm² and more) for rapid current discharge and stability during faults.

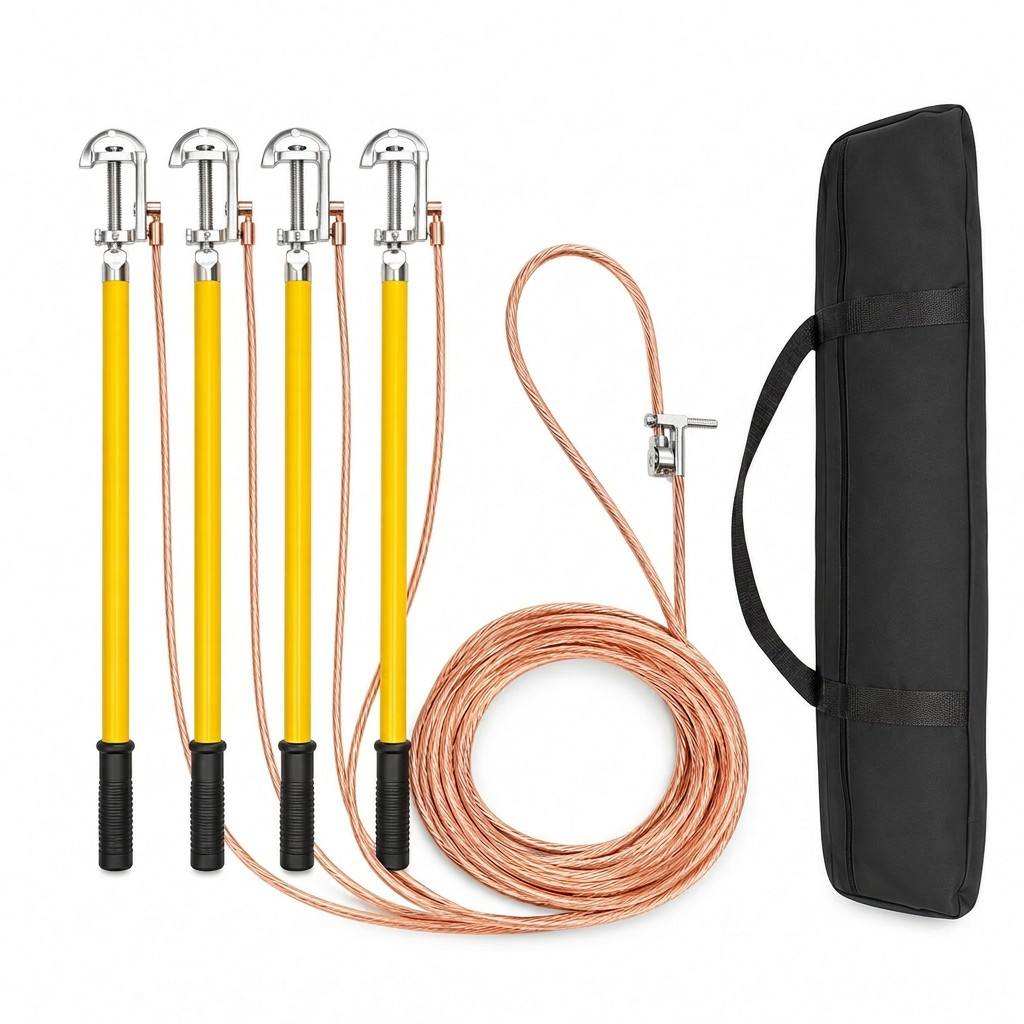

Lightweight modular 3-phase design for quick assembly and transport, significantly reducing installation time for field technicians during emergency repairs or routine maintenance.
Customizable cable lengths, cross-sections and grounding clamp types to meet specific utility requirements and international standards (e.g. IEC), ensuring a perfect fit for site conditions.
Related Products
View all Grounding, Earthing & Lightning Protection
Technical guides
Still deciding? Read the engineering guide
Background on how this product's class, dimensions and test requirements are determined.
FAQ
Frequently asked questions
Answers below are taken directly from this product's recorded specification, packaging and delivery data.
- Which standards and certifications does this product comply with?
- 110 kV / 220 kV 3-Phase Portable Grounding Device is supplied under IEC 61230 and ISO 9001.
- What is the minimum order quantity (MOQ)?
- The minimum order quantity for this product is 1 set.
- What is the lead time?
- Lead time: 7-30 days, depending on order quantity.
- Which port is the product shipped from?
- Shipments are loaded at Tianjin.
- What is the monthly supply ability?
- Supply ability: 85,000 sets/month.
- What are the main technical specifications?
- Type: 3-phase portable grounding device; Voltage Classes: 110 / 220 kV.
- How is the product packed for shipment?
- Sales unit: single item; Package size: 190 x 42 x 42 cm; Gross weight: 18.0 kg
