IEC 61111 Standard Insulating Mat 10 kV / 35 kV

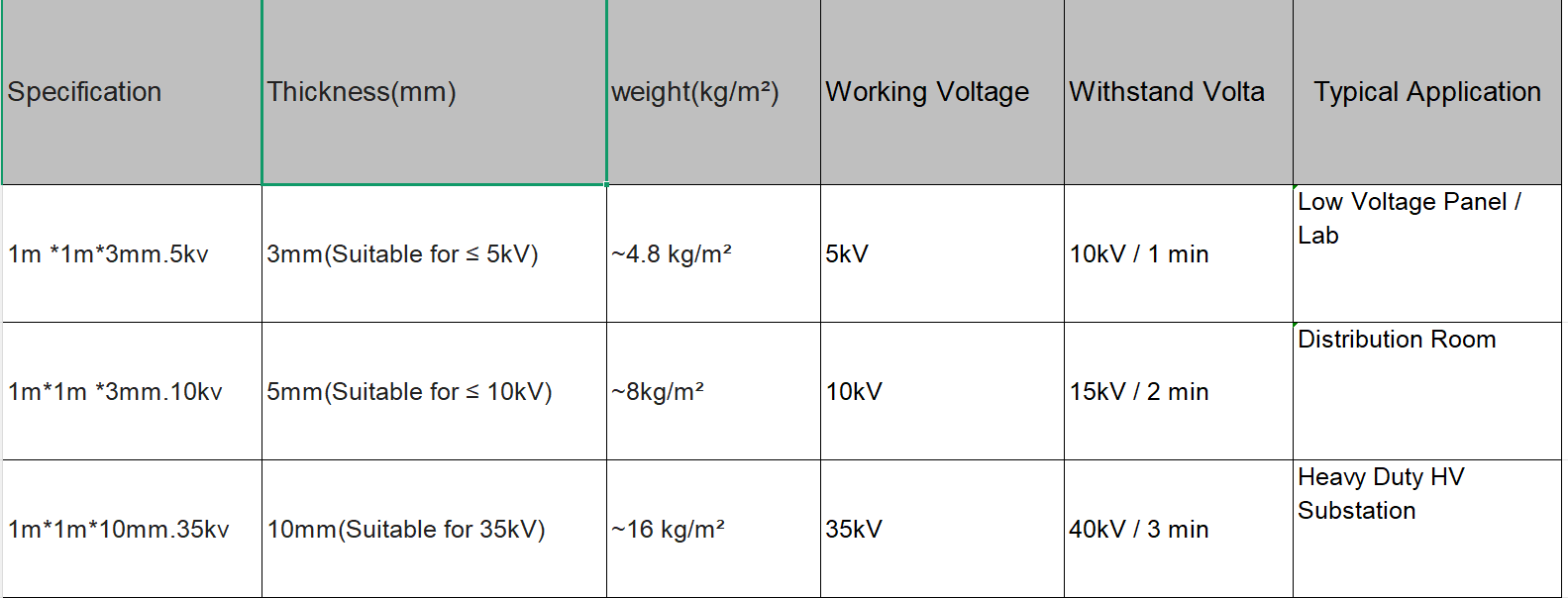

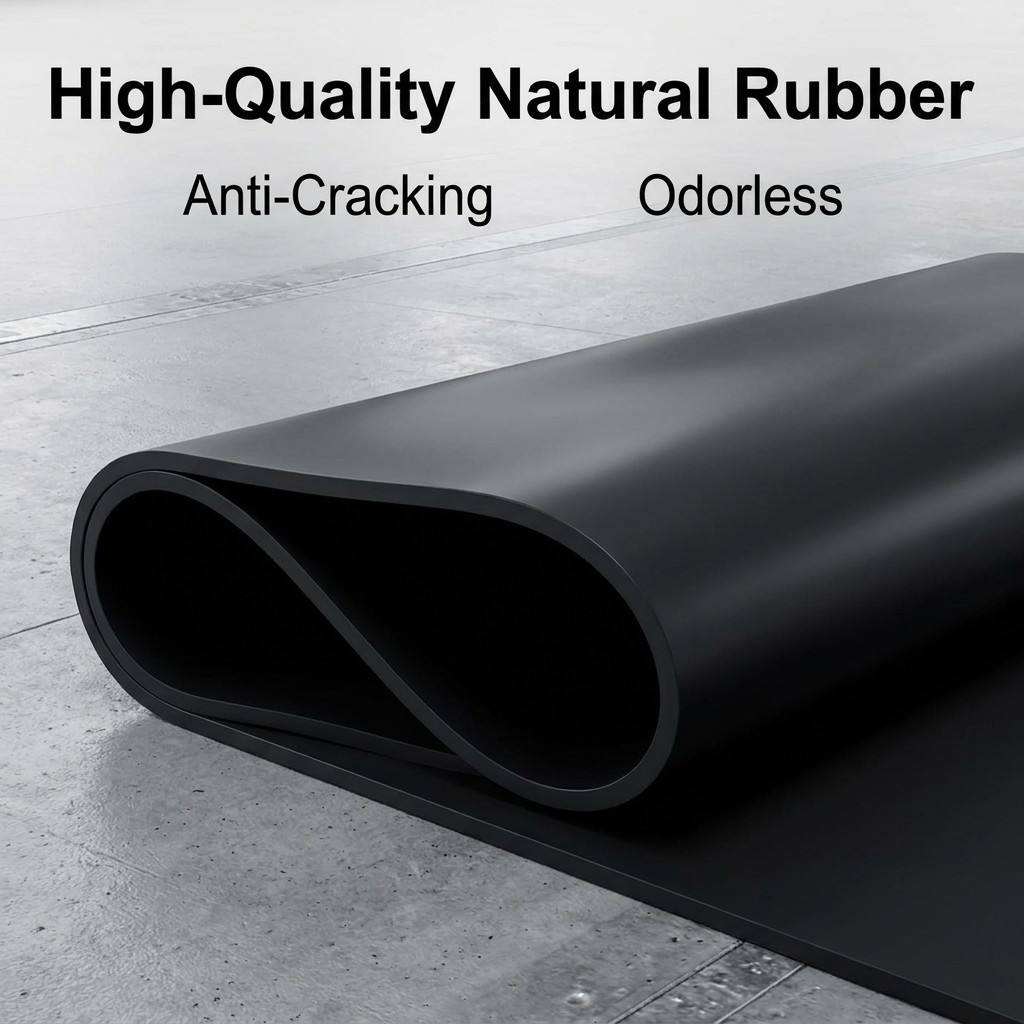

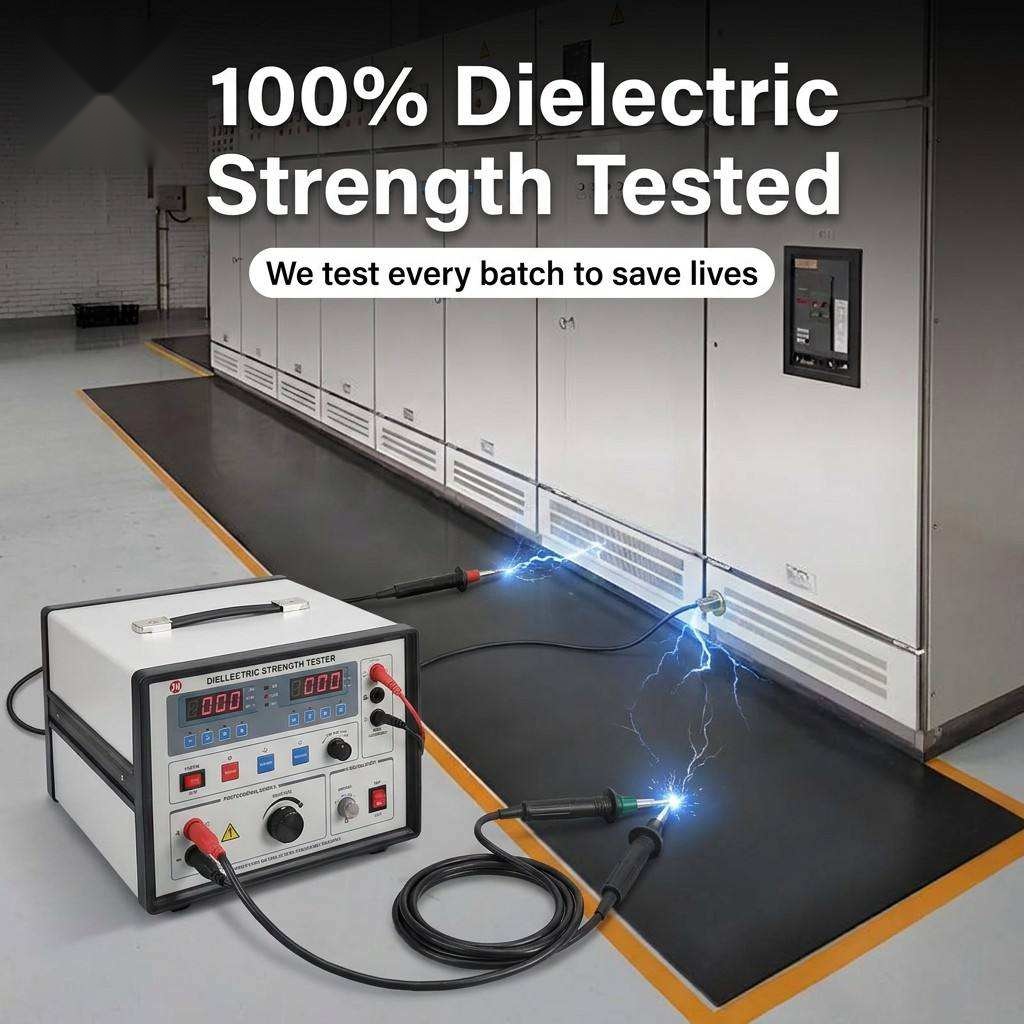

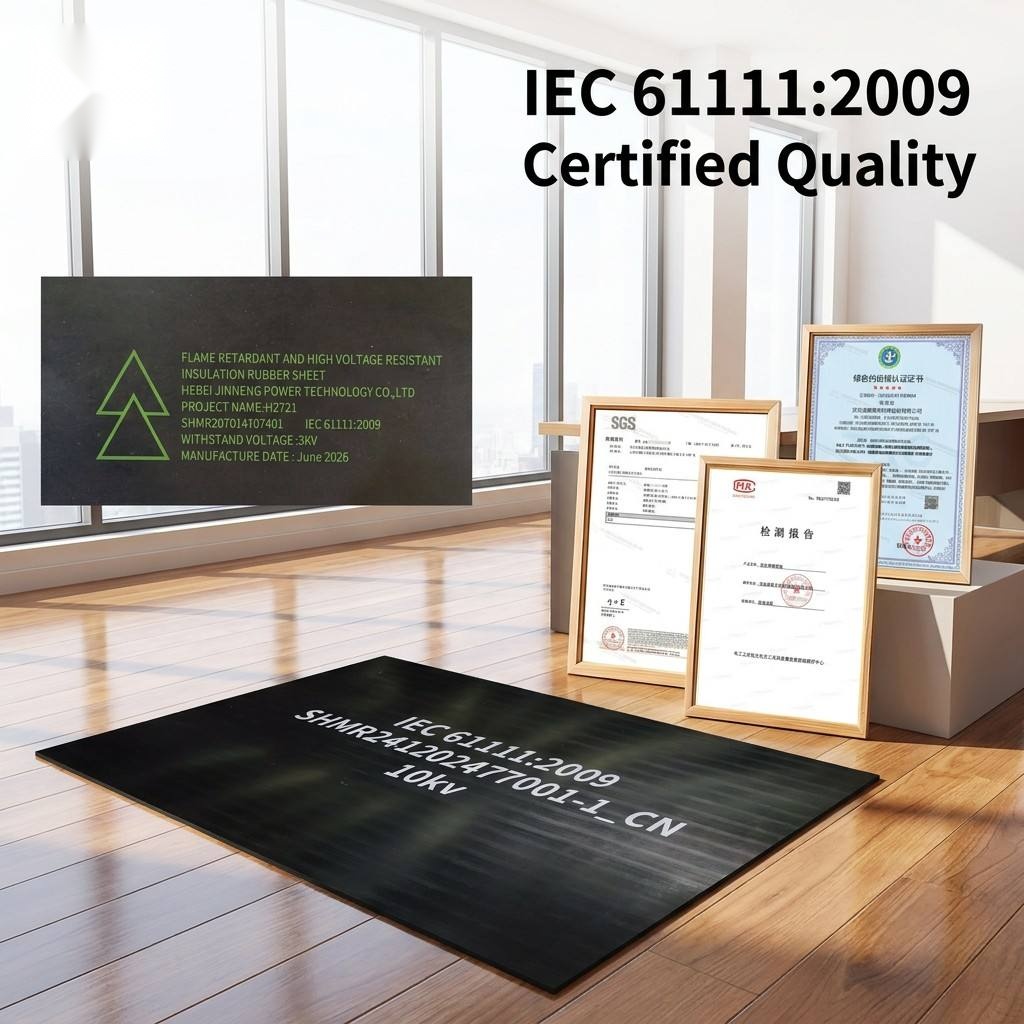

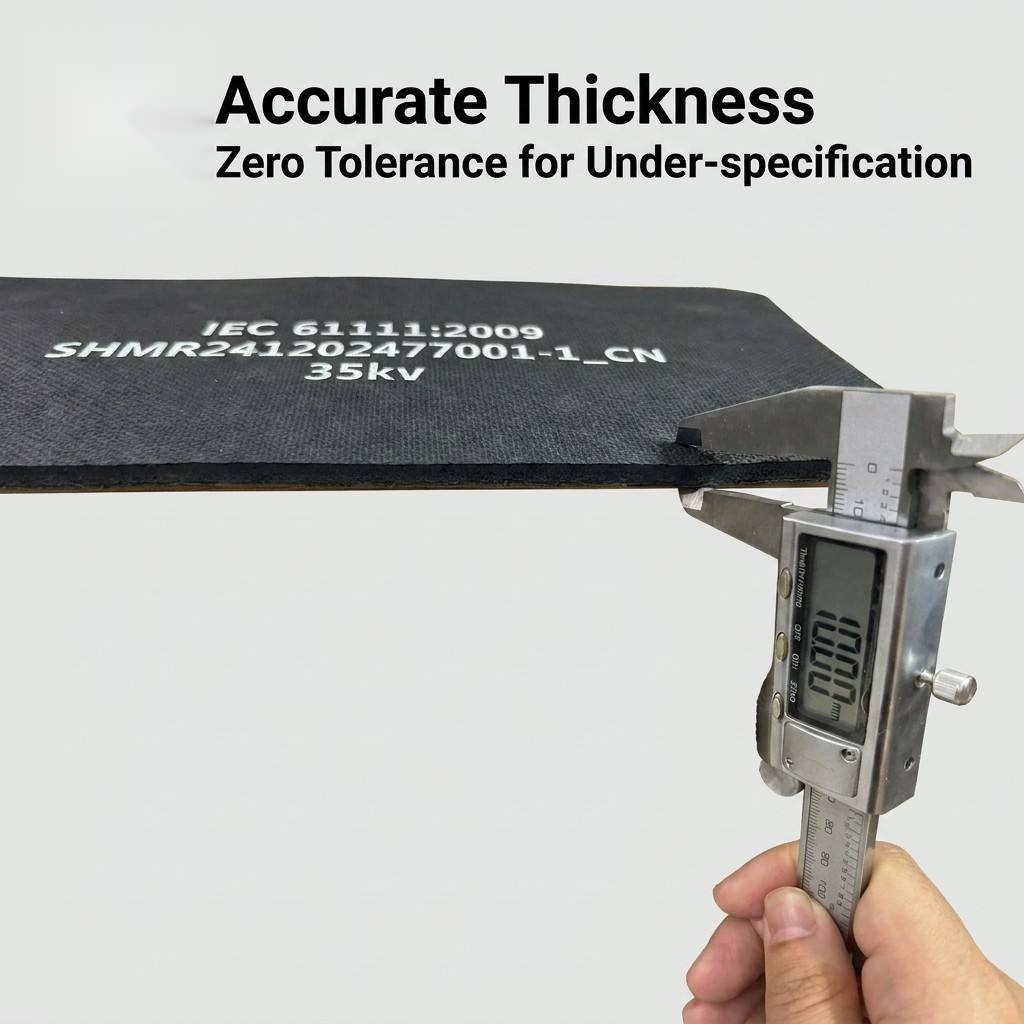

IEC 61111 Standard Insulating Mat (10kV / 35kV) — electrical safety rubber mat for substations and power distribution rooms. Product Highlights: - High dielectric strength: excellent resistance to high-voltage breakdown, fully compliant with international safety standards. - Anti-slip and wear-resistant: textured surface design prevents slips in industrial environments. - Flame-retardant: self-extinguishing material enhances fire safety in power rooms. - Eco-friendly, low odor: made from premium rubber compound with minimal chemical odor, suitable for indoor use. - Acid and alkali resistant: durable in harsh chemical or oil-contaminated environments. Standards & quality: manufactured strictly to IEC 61111 (international) or ASTM D178 (US); every batch passes high-voltage withstand testing before shipment; internal test reports or third-party testing (SGS/TUV) available. Selection guide (thickness vs voltage): - 3mm: suitable for ≤5kV - 5mm: suitable for ≤10kV - 8mm: suitable for ≤25kV - 10mm-12mm: suitable for 35kV Durability: made from virgin rubber — no strong toxic chemical odor; safe for long-term use in enclosed distribution rooms. Contains anti-aging and anti-UV additives; service life 5-8 years under normal indoor conditions. Customization: standard colors black/red/green; rolls cut to your specific length and width (width up to 2m); multiple surface textures (fine rib, wide rib, diamond pattern) for wet-condition traction. Packaging: each roll wrapped in moisture-proof film, then packed in woven bags or on fumigated wooden pallets to prevent deformation or scratching during sea freight.
